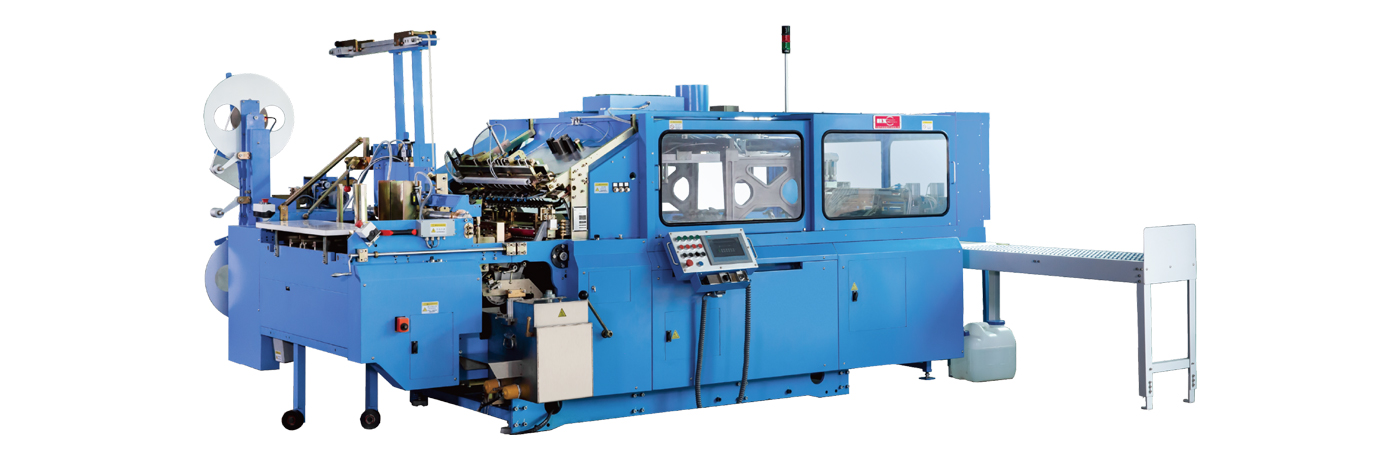

High Speed Case Making Machine sets the scale world-wide for flexibility and reliability in the case making production. Its unique and constantly optimized design makes the machine produce the book cases, files, posters, calendar and board game components at speeds of up to 60 cycles/min automatically.

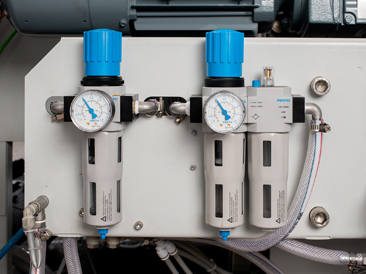

FESTO Pneumatic Control System

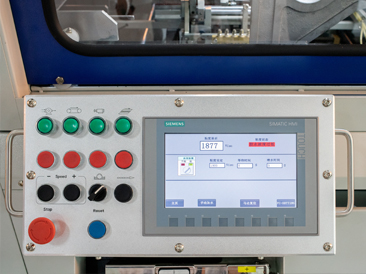

SIEMENS Control Panel
Production Flow
Technology Parameter
Speed
60pcs/min
Board Thickness
1-4mm(optional device for minimum thickness 0.6mm)
Spine Width
6-80mm
Width of Channel Rail
4-15mm
Thickness of Center Board Strip
1-4mm(the most thickness is 2.5mm when width is 6mm)
