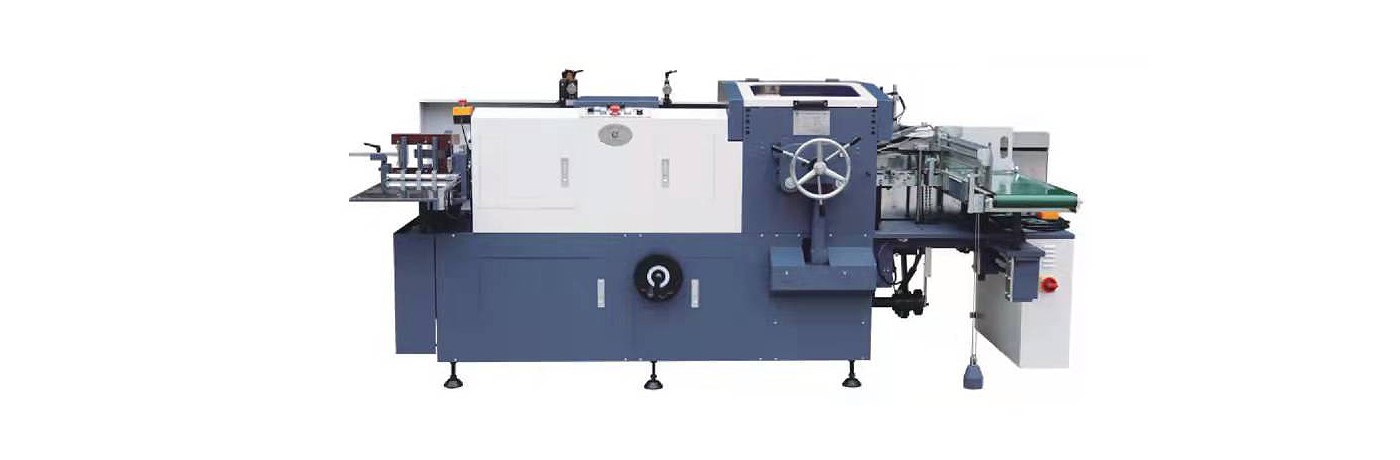

Book Flapping Machine
Book Flapping Machine is designed for the book cover binding finish, automatically complete the procedure of book block front cutting, book cover creasing and folding. Easy operation and adjustment, the speed can be up to 45 pcs/min.

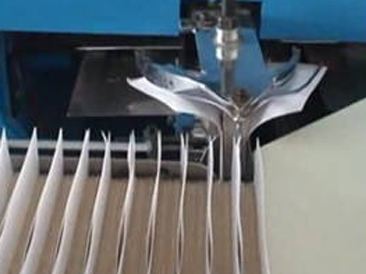

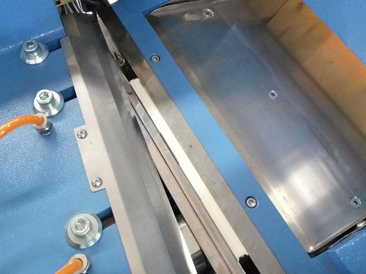

Cover Scoring and Folding Device
Edge Trimming Device

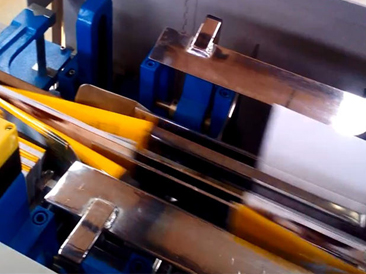

Automatically Book Transfer and deliver Device

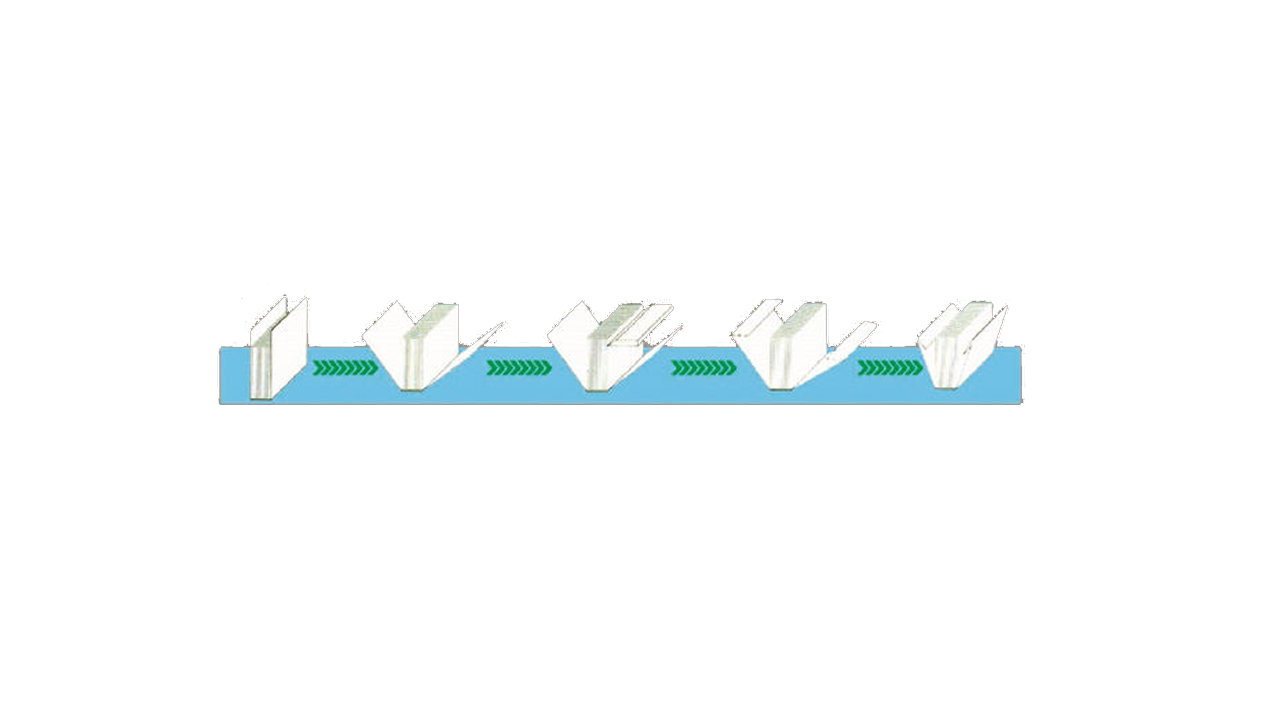

Production Flow
Technology Parameter
Max Book Size
320×240mm
Min Book Size
150×105mm
Max Book Thickness
45mm
Min Book Thickness
6mm
Max Cover Folding Width
160mm
Min Cover Folding Width
40mm
Max Mechanical Speed
45books/min
Machine Parameter
Electric
380V
Power
4KW
Dimensions
3060×1450×1606mm(L×W×H)
Weight
2400kg
