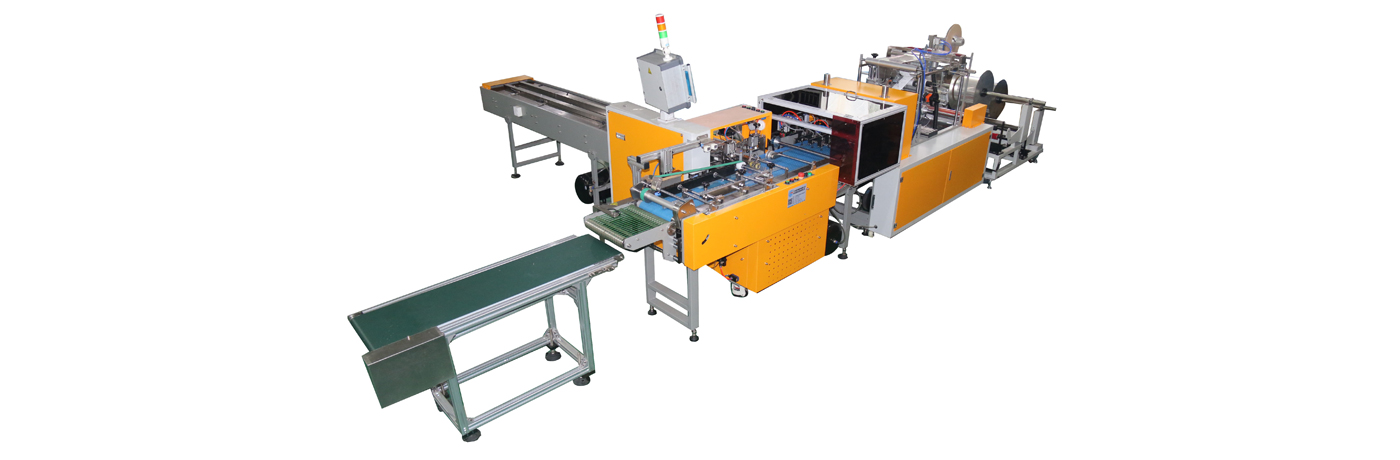

Self-Adhesive Bag Packing Machine

Self-Adhesive Bag Packing Machine is used to pack the regular sheet products, such as notebook, brochures, paper bag, envelopes, cards, hangtags, postcards, tags, etc., with the original flat-bag heat sealing technology, multi-sevro control, meet the quality and function requirments, two ways of sealing self-adhesion and hot-cutting three-side are selectable.

Technology Parameter

Packaging Materials
OPP,CPP,PP (the roll inner shaft diameter is 75mm)

Width of Bagging
100-320mm

Max. Length of Bagging
480mm

Height of Packing Products
1-15mm

Packing Speed
10-45 package/min (determined by Size of Bag)

Film Thickness
0.025-0.07mm

Film Roller Inner Diameter
75mm

Film Roller Outer Diameter
450mm

Film Packing Way
need to fold in half, keep the tongue

Tongue Length
≤30mm(determined by Size of Bag)

Machine Parameter

Power
15KW

Power Supply
380V, 50Hz

Air Pressure
0.06-0.08MP

Dimension
6000×4000×800mm(L×W×H)

Solutions

Envelope

Lever Arch File

Play Cards

Lever Arch File


Relevant recommendations

Notebook Ribbon

Notebook Elastic Band

Book Back Spine Taping Machine

Automatic Access Punching Machine

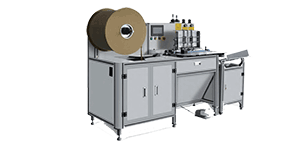

Automatic Double Loop Wire Binding Machine
