CP Round Pile Folding Machine

CP High-Speed Round Pile Folding Machine is particularly suitable for medium to large circulations, it allows for a high performance by non-stop-operation as the feeding need not be interrupted, thus increasing the daily production by more than 15% compared to the flat pile feeder. Even sensible papers and pre-folded, pre-perforated, or creased signatures can be processed.

Rigorous Layout of Electrical Box
Scratch-Proof Buckle Plate
Round Pile Feeder
Fine and Straight Grain Folding Roller
Durable Ball Bearing
3 hole PU suction wheel
Automatic Lubrication Device
Special helical Gears
Electric Knife
Sheet Detector System

Production Flow

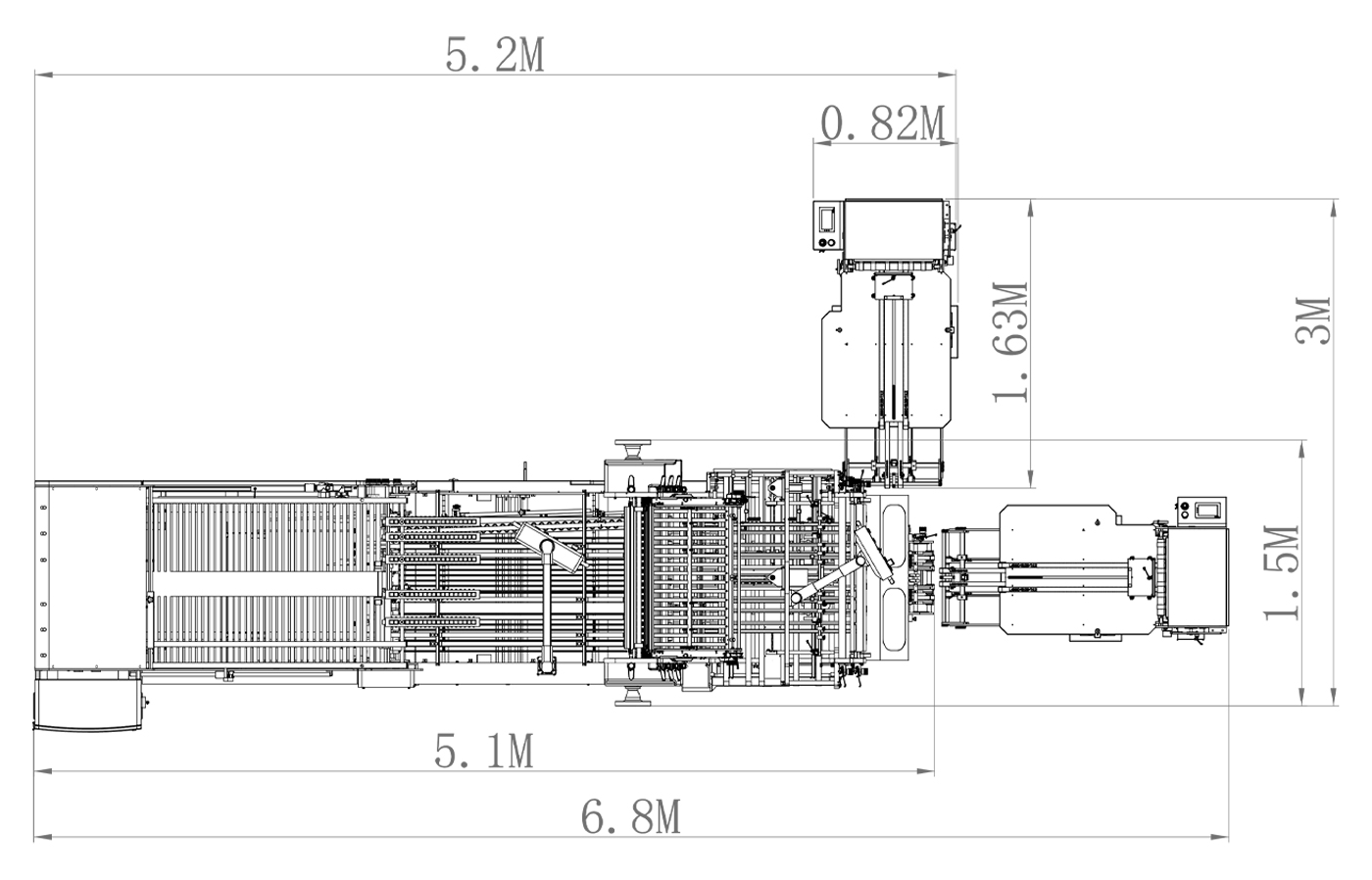

Dimensions

Technology Parameter

CP66/4KL-R

Max. sheet size
660×1040mm

Min. sheet size
180×100mm

Paper Thickness
40-210gsm

Max. Speed
210m/min

CP78/4KL-R

Max. sheet size
780×1140mm

Min. sheet size
200×150mm

Paper Thickness
40-210gsm

Max. Speed
210m/min

CP80/4KL-R

Max. sheet size
800×1200mm

Min. sheet size
200×150mm

Paper Thickness
40-210gsm

Max. Speed
210m/min

Machine Parameter

Power
7kW

Dimensions
6400×2800mm(L×W)

Weight
2000kg

Solutions

classical notebook with elastic band

Lever Arch File

Thread Sewing Exercise Book

Lever Arch File

Hardcover Book with ribbon

Lever Arch File

Hardcover Book

Lever Arch File

glued book block

Lever Arch File

